Brand
Fluke®

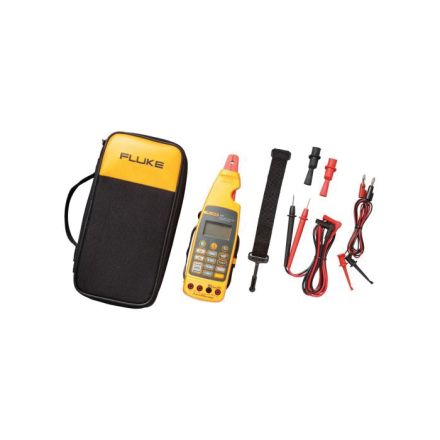

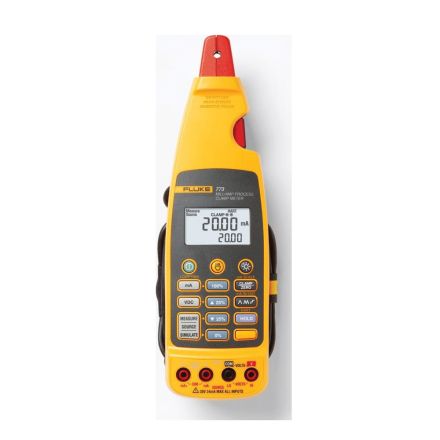

FLUKE-773 CAL,MILLIAMP PROCESS CLAMP METER, CAL TRACEABLE W DATA
- GLD# FLUKE-100461
- MFG# 5160682
- UPC 095969946940
Min. Order Qty 1
Description
Procédé Fluke milliampère pince ampèremétrique, 0 à 30 VCC, calibre électrique 24 ma, résistance de 500 ohms, fréquence 5 à 500 HZ, affichage rétro-éclairé, 0.2 % + 5 comptes, 1 % + 5 comptes, 0.Précision de courant alternatif de 2 % + 2 comptes, 0.Précision de tension de 2 % + 2 comptes, source dalimentation par batterie, -10 à 50 deg c de fonctionnement, 11-5/8 po l x 5-3/4 po l x 2-7/8 po h dimensions
Specifications
| UNSPSC | 41113630 |
|---|---|
| Dimensions | 11-5/8 in L x 5-3/4 in W x 2-7/8 in H |
| Display Type | Backlit |
| Frequency Rating | 5 to 500 Hz |
| Resistance | 500 Ohm |
| AC Current Accuracy | 0.2% + 5 Counts, 1% + 5 Counts, 0.2% + 2 Counts |
| Electrical Ratings | 0 to 30 VDC, 24 mA |
| Operating Temperature | -10 to 50 deg C |
| Power Source | Battery |
| Voltage Accuracy | 0.2% + 2 Counts |
Features

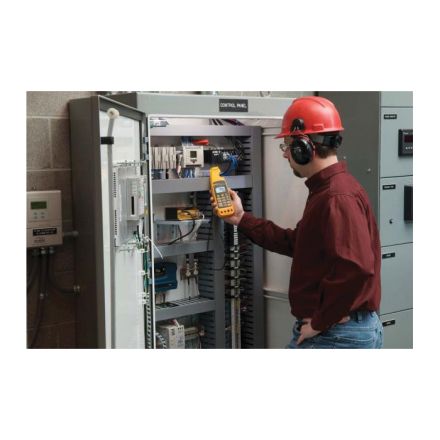

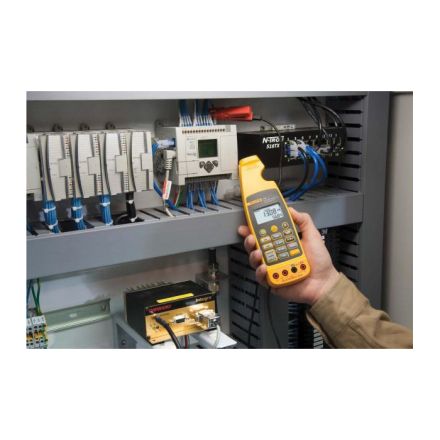

- Measure 4 to 20 mA signals without breaking the loop
- Source/simulate 4 to 20 mA signals and provide loop power
- Source/measure DC voltage to verify power supplies or I/O signals
- Best in class accuracy of 0.2%
- Delivers 0.01 mA resolution and sensitivity
